Multi-Channel Level Meters

Darkwood Designs Multi-Channel Level Meter can display from 1 to 24 level meters in 1 to 4 rows.

• Channels can be assigned individually or set up as stereo pairs.
• Equally good as just a single channel
• Choice of scale design
• Label options include font and colours
• Settings can be stored and reloaded
• Accurately reads peaks
• Marker shows average level over preset time
• Operate with or without Windows border
• Swap channels by drag & drop
• Stereo Phase Correlation indicator (digital version only)
• Choice of five sizes (digital version only)


  For Windows XP / Vista / 7 / 8 / 10  only
  Requires WDM drivers  (does not support ASIO)




Note: Although there can be up to 24 channels the actual number of channels may depend on other factors such as computer power. The maximum number of different channels I have physically tested is 18 using USB devices, then I ran out of devices!

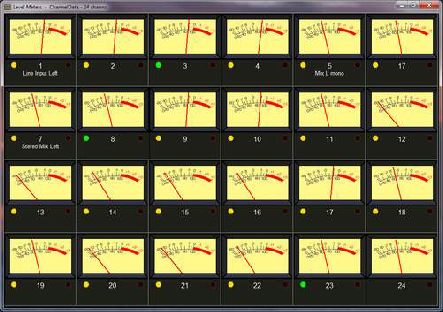

In the illustration above some channels are assigned to the same input.

I understand it has been tested successfully with 24 channels using Axia PC driver which converts audio-over-IP streams into WDM channels for Windows.

The ‘Digital’ bargraph and the ‘Analogue’ versions are different programs but similar in most functions.  Phase Correlation and size options are not provided in the analogue version.

Six size options are provided in the digital version, described as:

•  940 x 700
• 1024 x 768
• 1280 x 800
• 1440 x 900
• 1920 x 1080
• 3840 x 2160  (essentially 2x larger)

The analogue VU scale can be used with a traditional 300mS VU meter response or in a fast-acting peak reading mode.

Up to 24 channels will fit 1024 x 768 px screen.

Operate without border. Numerical readout and average marker are optional.

If you find the program useful you could send me a small donation

         Donate using PayPal

For any problems with the program email  DarkwoodDesigns@gmail.com

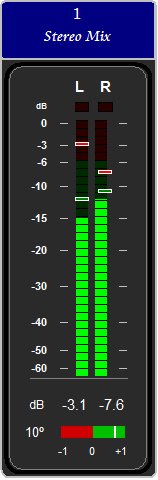

Digital Meter - A single borderless channel in the largest size

Analogue Meter - A single borderless stereo pair iwith VU scale

This is the screen resolution in which 24 channels in 2 rows will comfortably fit.  Larger sizes have more features.

The analogue version is one size only, 24 channels will fit in 1024 x 768. Less channels will of course take up less space but the minimum recommended screen size is 800 x 600.

These meters are for indicating multiple inputs and do not indicate stereo or surround sound 5.1 or 7.1 outputs unless your soundcard provides this function. Even if it does it may be disabled or may be stereo only.

See this info  Enabling What-You-Hear in Windows 7
